New Machine and Production Line

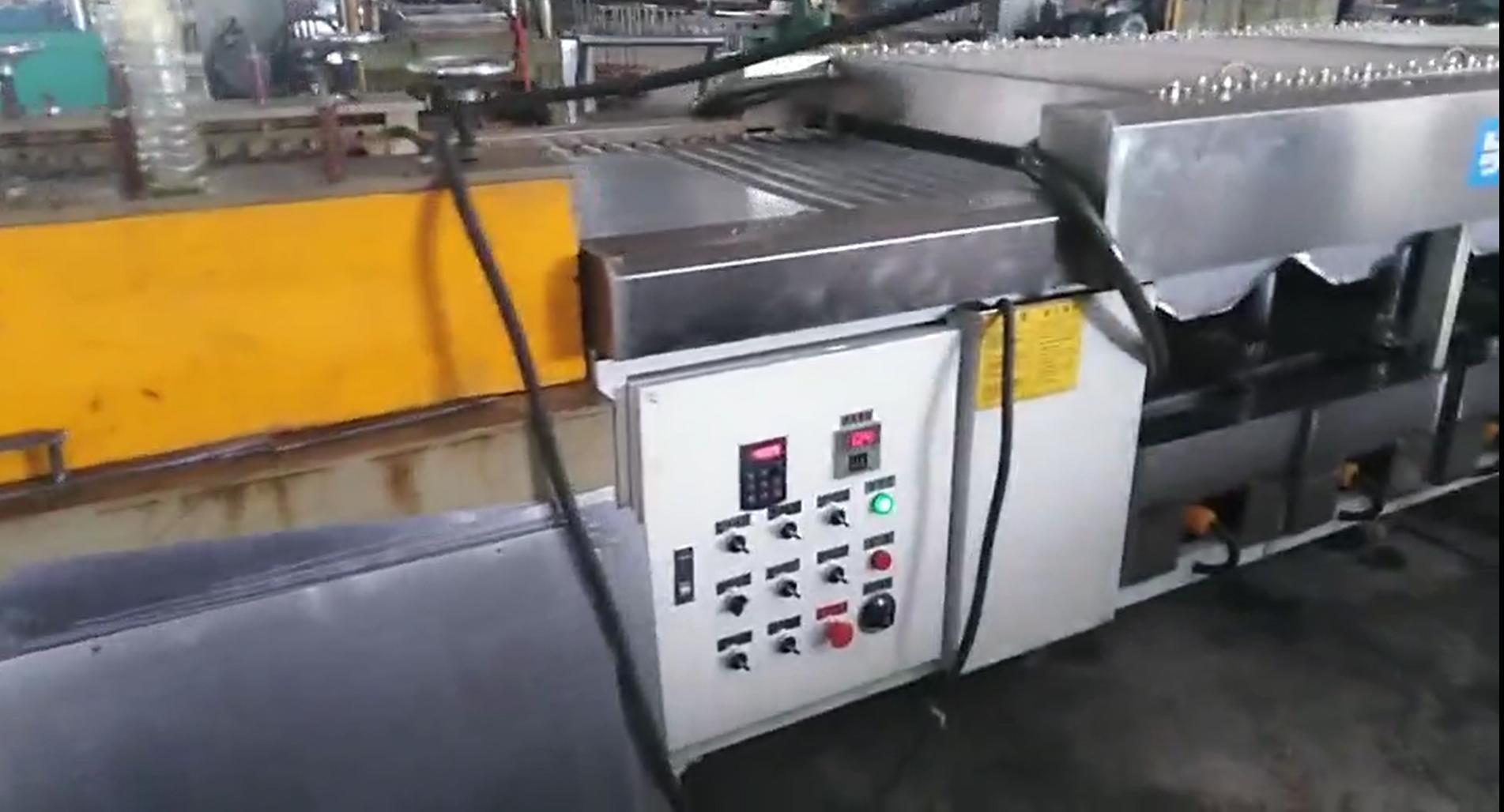

New Production Line for Aluminium Ceiling(Clip in Type)
Perforation
Panels are either plain or perforated.The standard perforation is 1.8mm dia. holes on 3.3 mm diagonal square pattern giving a 19% open area. Perforation with 2.3mm, 5mm and other diameters are also available
Sound Absorption
The back of the perforated panels comes with acoustic material, SOUNDTEX C 1986 S/W. This material is non-flammable and meets the requirement of building material class B1.The Panels
Material : 0.5 - 0.8mm thick aluminium plate. Other thickness available on request.Weight : Average~1.83kg per square meter
Surface Finish : Polyester powder-coated
Dimension :
300mm x 600mm
600mm x 600mm
300mm x 300mm
and other sizes
Colour : White or other colours available on request.
The Suspension System
All main and cross carriers as well as brackets and clips are made of galvanized steel.Rod Hanger : 4mm hanger with adjustable clip.
Angle : Aluminium capping wall angle or painted steel wall angle.
Size : 24mm x 24mm
Packing
Each panel is protected by an individual plastic cover. Each carton box contains 20 panels.Quality System
Awarded ISO 9001
